The TMS32010 digital signal processor (DSP), introduced in 1983, was the first DSP in the TMS320 family. From it has evolved this TMS320C1x generation of 16-bit DSPs. All ′C1x DSPs are object code compatible with the TMS32010 DSP. The ′C1x DSPs combine the flexibility of a high-speed controller with the numerical capability of an array processor, thereby offering an inexpensive alternative to multichip bit-slice processors.
•Performance Up to 8.77 MIPs
•All TMS320C1x Devices are Object Code Compatible
•144/256-Word On-Chip Data RAM
•1.5K/4K/8K-Word On-Chip Program ROM
•4K-Word On-Chip Program EPROM
(TMS320E14/P14/E15/P15/E17/P17)
•One-Time Programmable (OTP) Versions Available (TMS320P14/P15/P17)
•EPROM Code Protection for Copyright Security
•4K / 64K-Word Total External Memory at Full Speed
•32-Bit ALU/Accumulator
•16 ×16-Bit Multiplier With a 32-Bit Product
•0 to 16-Bit Barrel Shifter
•Eight Input/Output Channels
•Dual-Channel Serial Port
•Simple Memory and I/O Interface
•5-V and 3.3-V Versions Available (TMS320LC15/LC17)
•Commercial and Military Versions Available
•Operating Free-Air Temperature . . . 0°C to 70°C

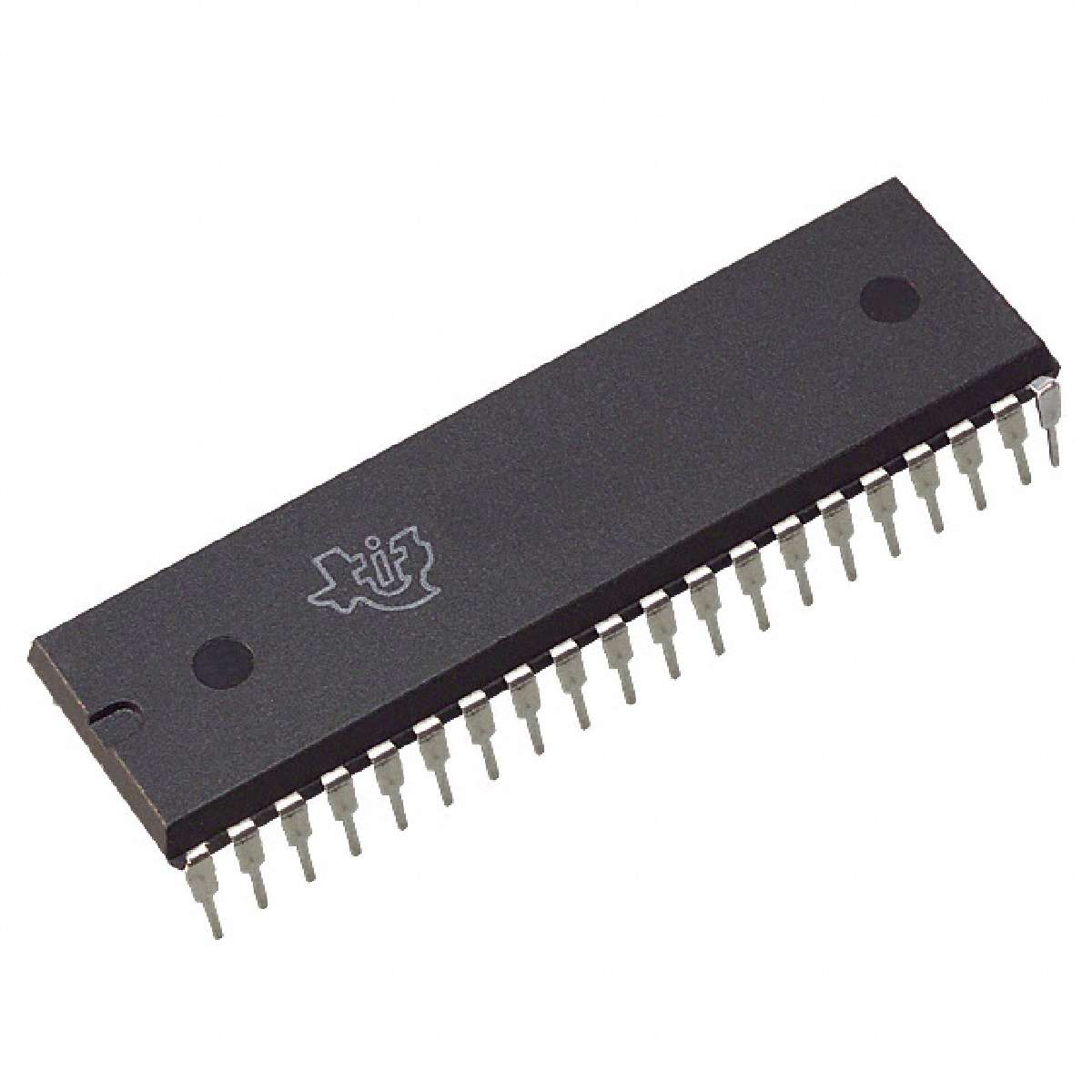

•Packaging: DIP, PLCC, Quad Flatpack, and CER-QUAD
