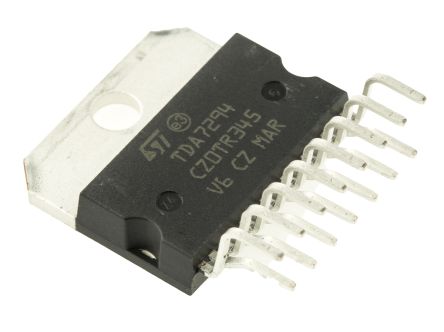

The TDA7294V is a DMOS audio amplifier with mute and standby function in Multiwatt15V package. This device is intended for use as audio class AB amplifier in Hi-Fi field applications. It is able to supply highest power into both 4ohm and 8ohm loads even in presence of poor supply regulation with high supply voltage rejection. The built-in mute function with turn-on delay simplifies the remote operation avoiding switching on-off noises.
High output current capability
Very high operating voltage range from ±10 to ±40V
High output power up to 100W (music power)
Input bias current of 500nA
Quiescent current of 30mA
Slew rate of 10V/µs
Frequency response (-3dB) range from 20Hz to 20KHz
Short circuit protection and thermal shutdown
Very low noise and distortion
Operating ambient temperature range from 0°C to 70°C
