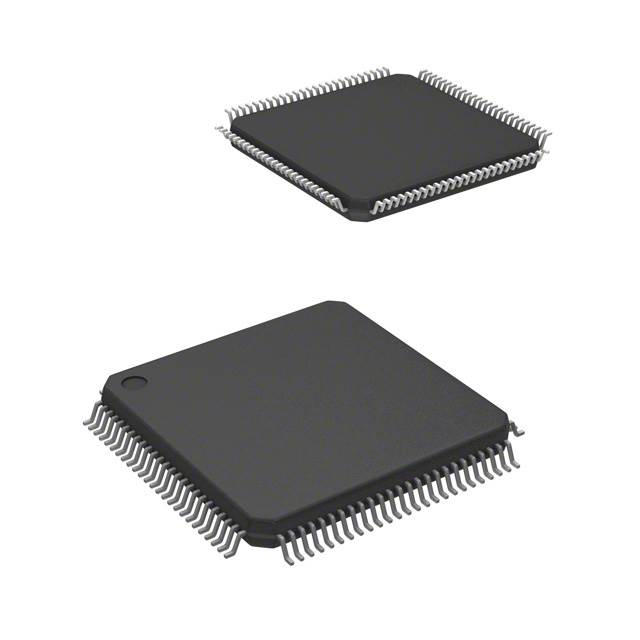

The MCF52254AF80 is a 32-bit Microcontroller based on the Version 2 ColdFire core operating at a frequency up to 80MHz, offering high performance and low power consumption. On-chip memories connected tightly to the processor core include up to 512kB of flash memory and 64kB of static random access memory (SRAM). It features 4-channel general-purpose timer (GPT) capable of input capture/output compare, pulse width modulation and clock module with 8MHz on-chip relaxation oscillator and integrated phase-locked loop (PLL).
Static operation
16 General-purpose, 32-bit data and address registers
Cryptographic acceleration unit (CAU)
Tightly-coupled coprocessor to accelerate software-based encryption and message digest functions
System debug support - Background debug mode (BDM) for in-circuit debugging
Real-time trace for determining dynamic execution path
On-chip memories - Up to 512KB of interleaved flash memory supporting 2-1-1-1 accesses
Fully static operation with processor sleep and whole chip stop modes
Rapid response to interrupts from the low-power sleep mode
Clock enable/disable for each peripheral when not used
Software controlled disable of external clock output for low-power consumption
Based on and includes all existing features of the TouCAN module
Full implementation of the CAN protocol specification version 2.0B
Zero to eight bytes data length
Unused MB space can be used as general purpose RAM space
Listen-only mode capability
Content-related addressing
No read/write semaphores
Time stamp based on 16-bit free-running timer
Global network time, synchronized by a specific message
