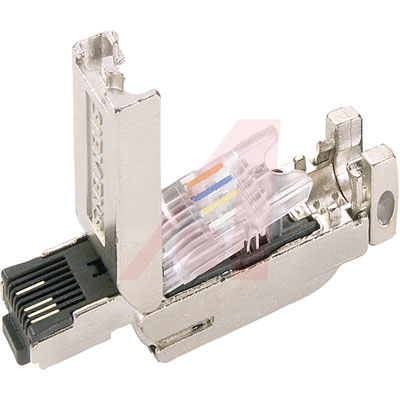

The compact, rugged design of the connectors makes the FC RJ45 Plug suitable for use in both industrial environments and on office equipment. The Industrial Ethernet FastConnect RJ45 Plugs 2 x 2 permit quick and easy installation of the Industrial Ethernet FastConnect installation cables 2 × 2 (4-core twisted pair cables) in the field.
The Industrial Ethernet FastConnect Stripping Tool for preparing the end of a cable (stripping the jacket and shield in one step) allows simple handling and fast, reliable fitting of the cable connector to the cable. As all the cable connector parts are captive, it can also be fitted in difficult conditions.
The plug-in connectors enable point-to-point links to be implemented (100 Mbit/s) for Industrial Ethernet between two data terminals/network components up to 100 m without the need for patches.
**Features:**
* RJ45 Plug-in Connector 180 Degree, Resistant to Interference Thanks to the Rugged Metal Housing
* Excellent EMC Shielding and Deflection Integrated Strain-Relief for Installation Cables
* Industry-compatible Design (Rugged Metal Housing, No Easily Lost Small Parts)
* Time-saving, Error-free installation Thanks to Color Coding and the Transparent Contact Cover
**Specifications:**
* Compatible to the EN 50173 (RJ45) / ISO IEC 11801 Standard
