MAX11210EEE+Maxim IntegratedMAXIM INTEGRATED PRODUCTS MAX11210EEE+ Analog to Digital Converter, Ultra Low Power, 24Bit, 480 SPS, Single, 2.7V, 3.6V, QSOP
￥
42.73

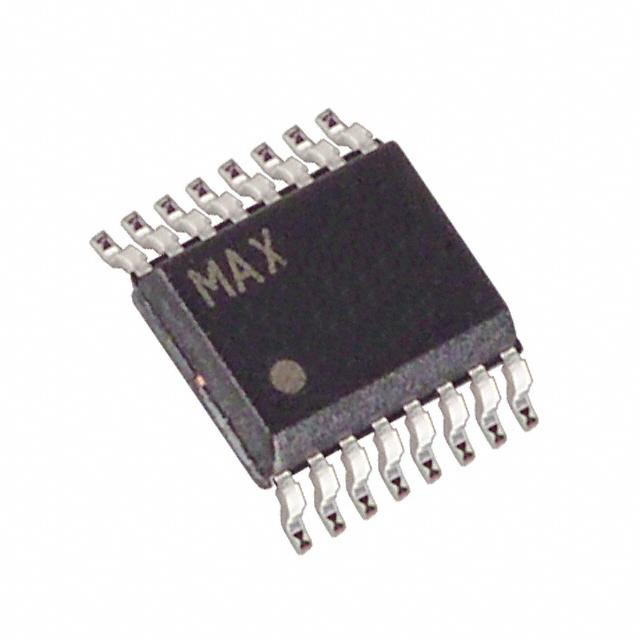

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX11210EEE+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX11210EEE+
百芯编号#:
CM55201600
价格(CNY):
￥
42.73
百芯库存:
218
个
库存地点:
可供应量:
182
个在库
此为供应商库存，需要与销售确认
产品类别:
AD转换器,模数
产品描述:
MAXIM INTEGRATED PRODUCTS MAX11210EEE+ Analog to Digital Converter, Ultra Low Power, 24Bit, 480 SPS, Single, 2.7V, 3.6V, QSOP
The MAX11210EEE+ is a 24bit, single channel, ultra low power, delta-sigma analogue to digital converter (ADC) with GPIO in 16 pin QSOP package. This high resolution, serial output ADC operates from 2.7V to 3.6V analogue and 1.7V to 3.6V digital supply range. It provides highest resolution per unit power in industry and it is optimized for applications that require very high dynamic range with low power such as sensors on 4mA to 20mA industrial control loop. Optional input buffers provide isolation of signal inputs from switched capacitor sampling network allowing this converter to be used with high impedance sources without compromising available dynamic range or linearity. The MAX11210 provides high accuracy internal oscillator that requires no external components. The internal digital filter provides more than 100dB rejection of 50Hz or 60Hz line noise when used with specified data rates. The device is used in sensor measurement (temperature and pressure) and battery applications.
Increase system robustness and reliability with ±2KV ESD protection
Operating temperature range from -40°C to 85°C
Supports SPI interface, lower system cost with integrated functionality
INL of ±10ppmFSR at 10sps, zero error of ±10ppmFSR and full scale error of ±20ppmFSR
Operating mode current drain of less than 300µA and sleep mode current drain of less than 0.4µA
Minimizes power consumption with ultra low power dissipation
Improves measurement quality with excellent DC/AC accuracy
24bit ENOB at 5sps, 20.9bit noise free resolution at 10sps & 19bit noise free resolution at 120sps
Total operating current of 235µA (buffers disabled) and 255µA (buffers enabled)
