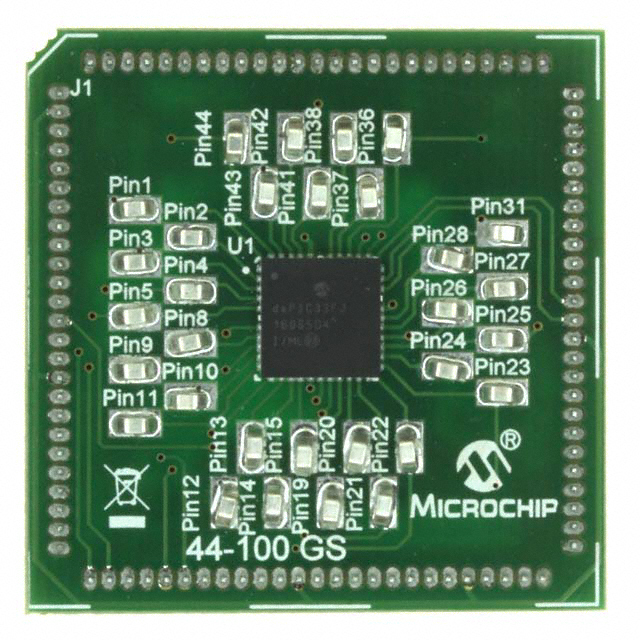

The MA330020 Plug In Module is small circuit board used with the Explorer 16 Development Board and the PICtail Plus daughter boards to evaluate dsPIC33FJ16GS504 MCU. The dsPIC33FJ16GS504 is a high performance 16bit Digital Signal Controller within a small 44 pin QFN package. The dsPIC33FJ16GS504 is equipped with Peripheral Pin Select (PPS), the PIM takes advantage of the PPS by using zero ohm resistors to connect the I/O to the 100 pin Explorer 16 Development Board. These plug into the main processor socket of the development boards so that different microcontrollers can be used for prototyping, demonstration or development quickly and easily.
Code efficient (C and Assembly) architecture
High Speed PWM
UART module (12.5Mbps)
4 wire SPI module
I2C module (up to 1 Mbaud) with SMBus support
PPS to allow function remap
Works with Explorer 16 board (DM240001 or DM240002) sold separately
