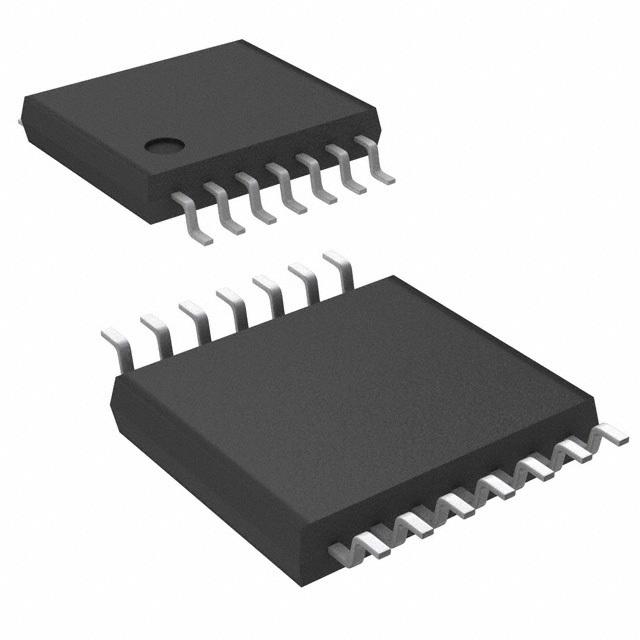

The 74LCX02MTCX is a low voltage quad 2-input NOR Gate with 5V tolerant inputs. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The device is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
5.2ns Propagation delay (tPD)
10µA ICC Maximum
Power down high impedance inputs and outputs
±24mA Output drive
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500mA
ESD performance - human body model >2000V machine model >200V
