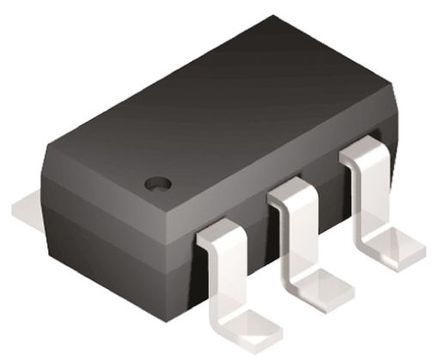

The USBLC6-2SC6 is a very low capacitance ESD Protection Device dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines. The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes. It has enhanced ESD protection to IEC 61000-4-2 level 4 compliance guaranteed at device level, hence greater immunity at system level.
2-data-line Protection
ESD protection of VBUS
3.5pF Maximum very low capacitance
150nA Maximum very low leakage current
Very low capacitance between lines to GND for optimized data integrity and speed
High reliability offered by monolithic integration
Low leakage current for longer operation of battery powered devices
Fast response time
Consistent D+/D- signal balance - Very low capacitance matching tolerance I/O to GND = 0.015pF
