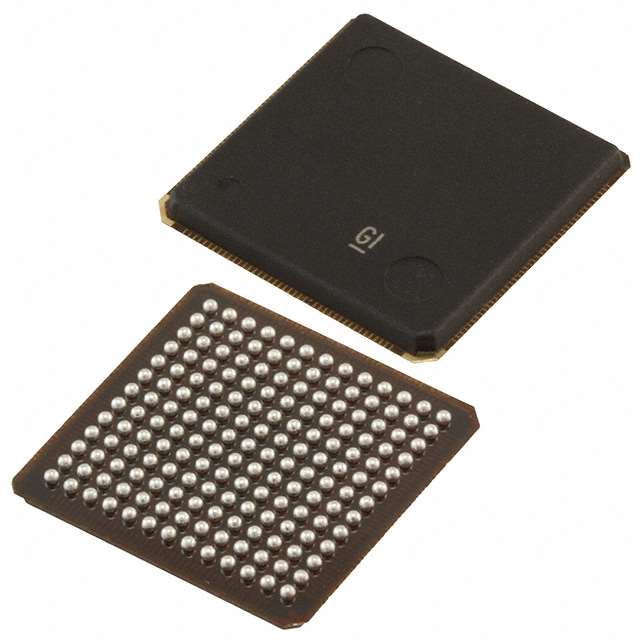

* 532-MIPS Quad-Core DSP Consisting of Four Independent Subsystems * Each Core has an Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Bus * 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel-Shifter and Two 40-Bit Accumulators Per Core * Each Core has a 17-Bit × 17-Bit Parallel Multiplier Coupled to a 40-Bit Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operations * Each Core has a Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator * Each Core has an Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle * Each Core has Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs) * Total 640K-Word × 16-Bit Dual-Access On-Chip RAM (256K-Word x 16-Bit Shared Memory and 96K-Word x 16-Bit Local Memory Per Subsystem) * Single-Instruction Repeat and Block-Repeat Operations * Instructions With 32-Bit Long Word Operands * Instructions With 2 or 3 Operand Reads * Fast Return From Interrupts * Arithmetic Instructions With Parallel Store and Parallel Load * Conditional Store Instructions * Output Control of CLKOUT * Output Control of Timer Output (TOUT) * Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions * Dual 1.6-V (Core) and 3.3-V (I/O) Power Supplies for Low-Power, Fast Operations * 7.5-ns Single-Cycle Fixed-Point Instruction * Twenty-Four Channels of Direct Memory Access (DMA) for Data Transfers With No CPU Loading (Six Channels Per Subsystem) * Twelve Multichannel Buffered Serial Ports (McBSPs), Each With 128-Channel Selection Capability (Three McBSPs per Subsystem) * 16-Bit Host-Port Interface (HPI) * Software-Programmable Phase-Locked Loop (PLL) Provides Several Clocking Options (Requires External TTL Oscillator) * On-Chip Scan-Based Emulation Logic, IEEE Standard 1149.1 (JTAG) Boundary-Scan Logic * Four Software-Programmable Timers (One Per Subsystem) * Four Software-Programmable Watchdog Timers (One Per Subsystem) * Sixteen General-Purpose I/Os (Four Per Subsystem) * Provided in 176-pin Plastic Low-Profile Quad Flatpack (LQFP) Package (PGF Suffix) * Provided in 169-ball MicroStar BGA™ Package (GGU Suffix)
