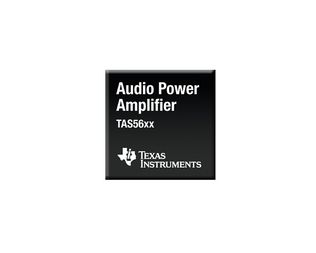

The TAS5615 is a high-performance analog input class-D amplifier with integrated closed-loop feedback technology (known as PurePath™ HD technology). It has the ability to drive up to 160W(1) stereo into 8-Ω speakers from a single 50-V supply.
FEATURES
• Active Enabled Integrated Feedback Provides: (PurePath™ HD Technology)
– Signal Bandwidth up to 80 kHz for High-Frequency Content From High-Definition Sources
– Ultralow 0.03% THD at 1 W into 8 Ω
– 0.03% THD Across All Frequencies for Natural Sound at 1 W
– 80-dB PSRR (BTL, No Input Signal)
– >100-dB (A weighted) SNR
– Click- and Pop-Free Start-Up
– Minimal External Components Compared to Discrete Solutions
• Multiple Configurations Possible on the Same PCB:
