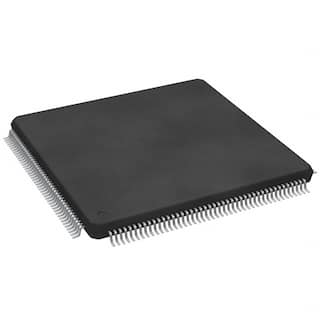

The STM32F417IGT6 is a STM32 F4 series 32-bit Microcontroller based on the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 168MHz. Its Cortex-M4 core features a floating point unit (FPU) single precision which supports all ARM single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The device incorporate high-speed embedded memories (up to 1024kB of Flash memory, up to 192kB of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This device offer three 12-bit ADC, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timer for motor control, two general-purpose 32-bit timers, a true RNG, as well as standard communication interfaces - up to three I²Cs, three SPIs, two I²Ss, four USARTs and two UART.
125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
LCD parallel interface, 8080/6800 modes
4 to 26MHz Crystal oscillator
Internal 16MHz factory-trimmed RC
32kHz Oscillator for RTC with calibration
Internal 32kHz RC with calibration
Sleep, stop and standby modes
VBAT supply for RTC, 20 x 32-bit backup registers and optional 4kB backup SRAM
16-stream DMA Controller with FIFOs and burst support
Serial wire debug (SWD) and JTAG interfaces
Cortex-M4 Embedded Trace Macrocell™
2 x CAN interfaces (2.0B Active)
SDIO interface
USB 2.0 full speed device/host/OTG controller with on-chip PHY
USB 2.0 high-speed/full-speed device/host/OTG controller
10/100 Ethernet MAC with dedicated DMA - supports IEEE 1588v2 hardware, MII/RMII
Hardware acceleration for AES 128, 192, 256, Triple DES, HASH (MD5, SHA-1) and HMAC
