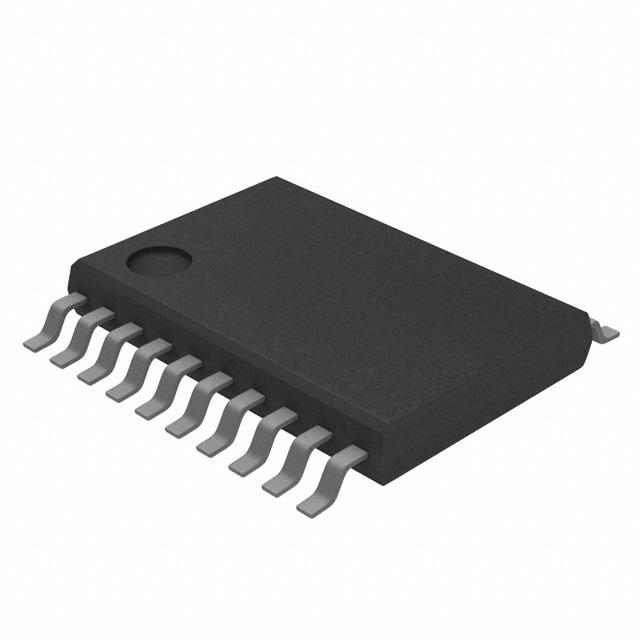

The SN74HC541PW is an octal Buffer/Line Driver with 3-state outputs. It features the performance of the HC240 devices and a pin-out with inputs and outputs. This arrangement greatly facilitates printed circuit board layout. The 3-state outputs are controlled by a two-input NOR gate. If either output-enable (OE1\ or OE2\\) input is high, all eight outputs are in the high-impedance state. The HC541 device provides true data at the outputs.
High-current 3-state outputs drive bus lines directly or up To 15 LSTTL loads
