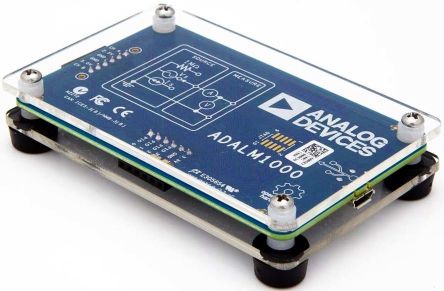

The ADALM1000 is a complete low cost active learning module. This module allow students to experience the real time designs for mixed signal circuit designs with interactive data measurement, visualisation and analysis software that allows users to build and test their circuits. It offers two high precision analogue channels, each capable of generating or measuring analogue signals at up to 100 kilo samples per second (KSPS).
Combines capabilities from analyzers, generators, curve tracers and current/voltage systems
Four digital signals
16bit (0.05%) basic measure accuracy with 4 digit resolution
Measuring and sourcing current (-200 to +200mA) and voltage (0 to 5V) simultaneously on same pin
5V, 2.5V fixed supplies
Two channel signal generation, voltage and current output
