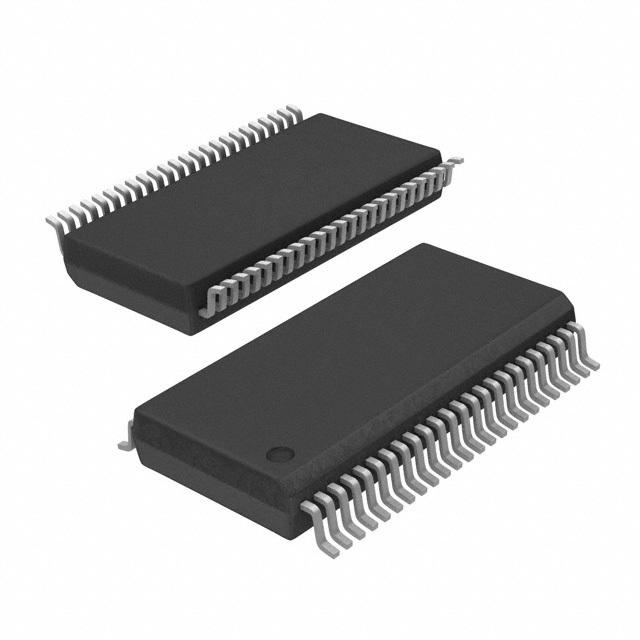

This 16-bit (dual-octal) noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH16245 device is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic high or low level applied to prevent excess ICC and ICCZ.
Features
• Member of the Texas Instruments Widebus™ Family
• Operates From 1.65 V to 3.6 V
• Max tpd of 3 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Bus Hold on Data Inputs Eliminates the Need for External Pullup or Pulldown Resistors
