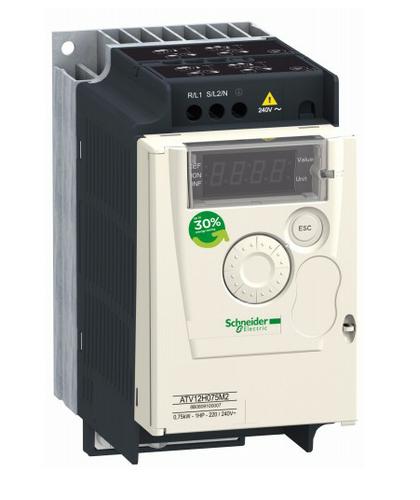

The ATV12H037M2 from Schneider Electric is a single phase, variable speed asynchronous motor drive with 0.37KW power and integrated EMC filter. This drive works at rated supply voltage ranging from 200V to 240V and standard dimension of 143mm height, 72mm width and 121.2mm depth. This simple machine used with centrifugal pumps and fans.
Modbus communication port protocol
1 RJ45 for Modbus on front face and 2 wire RS 485 for Modbus physical interface
Featured with heat sink assembly
Without built-in fan
Supply frequency of 50Hz/60Hz and nominal switching frequency of 4kHz
Product weight is 0.7Kg
Vertical operating position
CSA, C-Tick, GOST, NOM and UL certified
IP20 without blanking plate on upper part
Ambient air temperature for operation range from 40°C to 60°C with current derating 2.2% /°C
