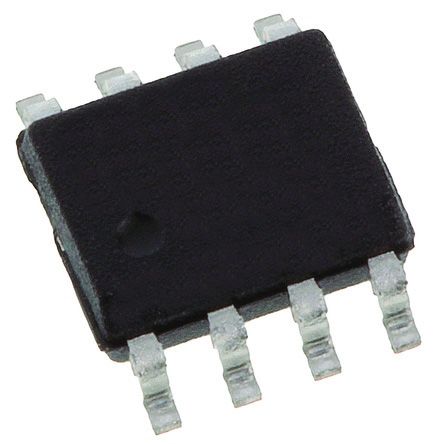

The SN65MLVD204AD is a half-duplex multipoint low-voltage differential (M-LVDS) Line Driver and Receiver optimized to operate at signalling rates up to 100Mbps. All parts comply with the multipoint low-voltage differential signalling (M-LVDS) standard TIA/EIA-899. The SN65MLVD20xx device has enhancements over their predecessors. Improved features include controlled slew rate on the driver output to help minimize reflections from unterminated stubs, which results in better signal integrity. Additionally, 8kV ESD protection on the bus pins for more robustness. The same footprint definition was maintained making for an easy drop-in replacement for a system performance upgrade.
Low-voltage differential 30 to 55R line driver and receivers for signalling rate up to 100Mbps
Up to 50MHz clock frequency
Receivers provide an offset (100mV) threshold to detect open-circuit and idle-bus conditions
Meets or exceeds the M-LVDS standard TIA/EIA-899 for multipoint data interchange
Controlled driver output voltage transition times for improved signal quality
Bus pins high impedance when disabled or VCC
-1 to 3.4V Common-mode voltage range allows data transfer with 2V of ground noise
