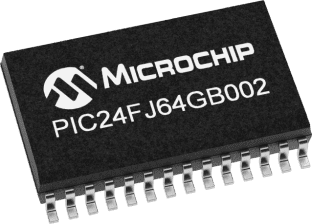

The PIC24FJ64GB002-I/SO is a 16-bit Flash Microcontroller with USB On-The-Go (OTG) and nanoWatt XLP technology. Central to all the devices is the 16-bit modified Harvard architecture, first introduced with Microchip"s dsPIC® digital signal controllers. The CPU core offers a wide range of enhancements. The microcontroller family of devices introduces USB On-The-Go functionality on a single chip to lower pin count Microchip devices. This module provides on-chip functionality as a target device compatible with the USB 2.0 standard, as well as limited stand-alone functionality as a USB embedded host. By implementing USB host negotiation protocol (HNP), the module can also dynamically switch between device and host operation, allowing for a much wider range of versatile USB-enabled applications on a microcontroller platform.
USB v2.0 On-The-Go (OTG) compliant
Dual role capable, can act as either host or peripheral
Low-speed (1.5Mbps) and full-speed (12Mbps) USB operation in host mode
Full-speed USB operation in device mode
Internal voltage boost assist for USB bus voltage generation
Modified Harvard architecture
Fractional/integer multiplier
Run, idle and sleep modes
Deep sleep mode for lowest current consumption
Multiple, switchable clock modes for optimum performance and power management
ESD sensitive device, take proper precaution while handling the device.
