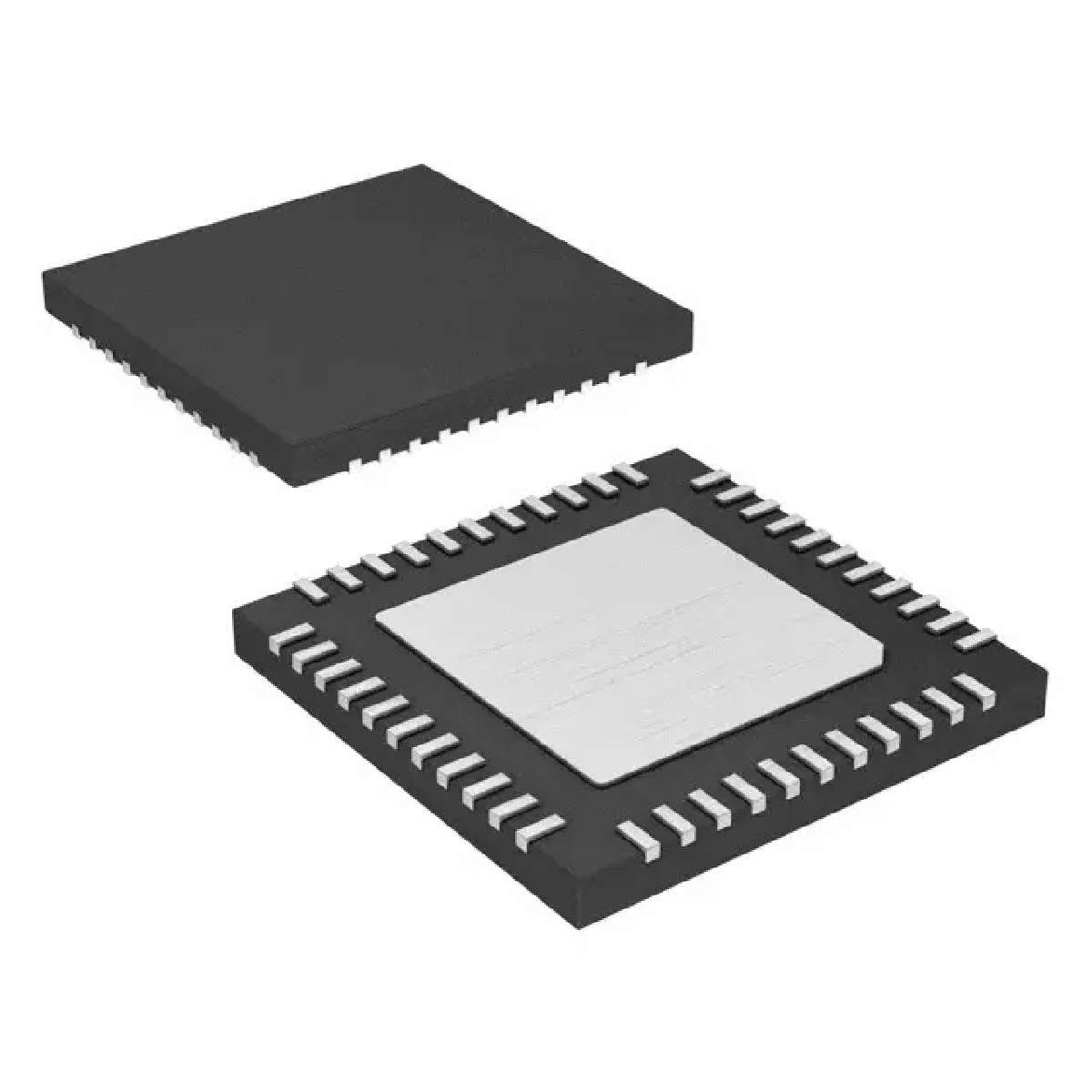

The PIC16F707/PIC16LF707 devices are covered by this data sheet. They are available in 40/44-pin packages. Figure 1-1 shows a block diagram of the PIC16F707/PIC16LF707 devices. Table 1-1 shows the pinout descriptions.
High-Performance RISC CPU:
• Only 35 Single-Word Instructions to Learn:
- All single-cycle instructions except branches
• Operating Speed:
- DC – 20 MHz clock input
- DC – 200 ns instruction cycle
• 8K x 14 Words of Flash Program Memory
• 363 Bytes of Data Memory (SRAM)
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
• Processor Read Access to Program Memory
• Pinout Compatible to other 40-pin PIC16CXXX and PIC16FXXX Microcontrollers
Special Microcontroller Features:
• Precision Internal Oscillator:
- 16 MHz or 500 kHz operation
- Factory calibrated to ±1%, typical
- Software selectable ÷1, ÷2, ÷4 or ÷8 divider
• 31 kHz Low-Power Internal Oscillator
• External Oscillator Block with:
- 3 crystal/resonator modes up to 20 MHz
- 3 external clock modes up to 20 MHz
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Oscillator Start-Up Timer (OST)
• Brown-out Reset (BOR):
- Selectable between two trip points
- Disabled in Sleep option
• Watchdog Timer (WDT)
• Programmable Code Protection
• In-Circuit Serial Programming™ (ICSP™) via two pins
• In-Circuit Debug (ICD) via Two Pins
• Multiplexed Master Clear with Pull-up/Input Pin
• Industrial and Extended Temperature Range
• High-Endurance Flash Cell:
- 1,000 Write Flash Endurance (typical)
- Flash Retention: >40 years
- Power-Saving Sleep mode
• Operating Voltage Range:
- 1.8V to 3.6V (PIC16LF707)
• 1.8V to 5.5V (PIC16F707)
Extreme Low-Power Management PIC16LF707 with nanoWatt XLP:
