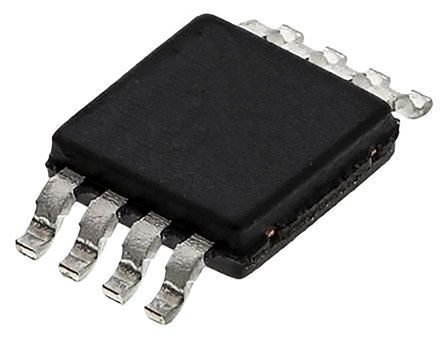

The OPA2170AIDGK is a 6V Micropower rail-to-rail output dual general purpose Operational Amplifier operates on supplies ranging from +2.7 (±1.35V) to +36V (±18V). This amplifier offers good offset, drift and bandwidth with low quiescent current. The single, dual and quad versions all have identical specifications for maximum design flexibility. Unlike most op-amps, which are specified at only one supply voltage, the OPAx170 family of op-amps is specified from +2.7 to +36V. Input signals beyond the supply rails do not cause phase reversal. This op-amp is stable with capacitive loads up to 300pF. The input can operate 100mV below the negative rail and within 2V of the positive rail for normal operation. Note that this device can operate with full rail-to-rail input 100mV beyond the positive rail, but with reduced performance within 2V of the positive rail.
19nV/√Hz Low noise
RFI filtered inputs
Input range includes the negative supply
Input range operates to positive supply
Rail-to-rail output
110µA per Amplifier low quiescent current
120dB High common-mode rejection
15pA Maximum low bias current
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
