The OPA209 series of precision operational amplifiers achieve very low voltage noise density (2.2nV/√Hz) with a supply current of only 2.5mA (max). This series also offers rail-to-rail output swing, which helps to maximize dynamic range.
FEATURES
• LOW VOLTAGE NOISE: 2.2nV/√Hz at 1kHz
• 0.1Hz to 10Hz NOISE: 130nVPP
• LOW QUIESCENT CURRENT: 2.5mA/Ch (max)
• LOW OFFSET VOLTAGE: 150μV (max)
• GAIN BANDWIDTH PRODUCT: 18MHz
• SLEW RATE: 6.4V/μs
• WIDE SUPPLY RANGE:
±2.25V to ±18V, +4.5V to +36V
• RAIL-TO-RAIL OUTPUT
• SHORT-CIRCUIT CURRENT: ±65mA

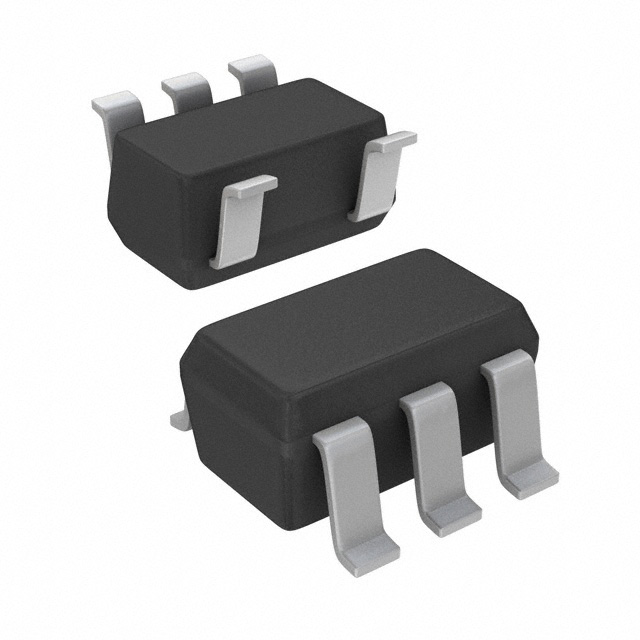

• AVAILABLE IN SOT23-5, MSOP-8, SO-8, AND TSSOP-14 PACKAGES
