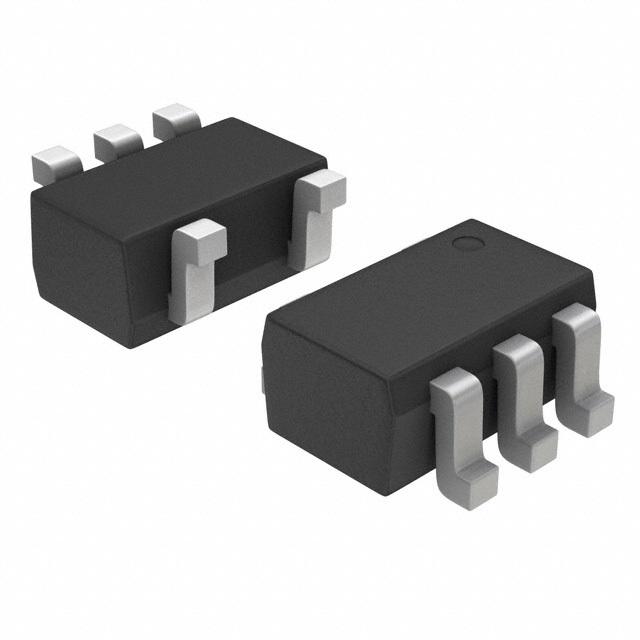

2-Input AND Gate/CMOS Logic Level Shifter ；Features High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1 uA (Max) @TA = 25°C TTL−Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V CMOS−Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @ Load Power Down Protection Provided on Inputs and Outputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 64; Equivalent Gates = 15 Pb−Free Package is Available
