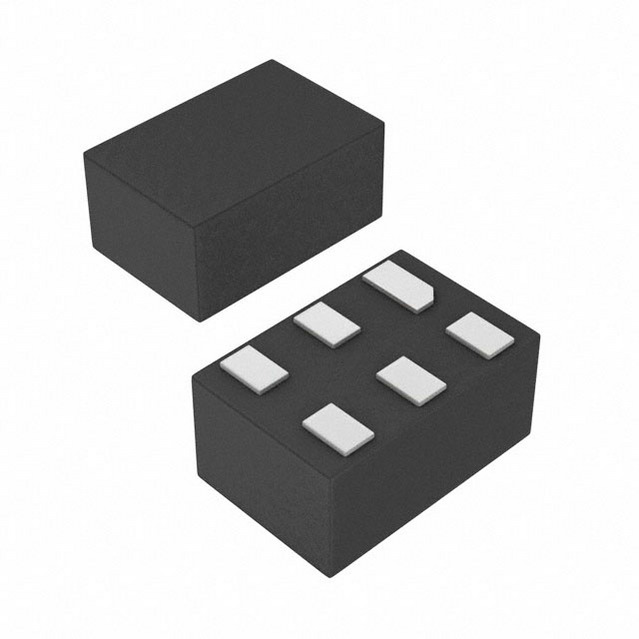

The MAX8840ELT30+T from Maxim Integrated Products is an ultra low noise, high PSRR, low dropout, 150mA linear regulator in 6 pin µDFN package. This regulator is designed to deliver up to 150mA continuous output current. It achieves a low 120mV dropout for 120mA load current. It uses an advanced architecture to achieve ultra-low output voltage noise of 11µVRMS and PSRR of 54dB at 100KHz. This low quiescent current linear regulator is designed for space restricted applications. Device is available with preset output voltages ranging from 1.5V to 4.5V. It is used in cellular and cordless phones, PDA and palmtop computers, base stations, Bluetooth portable radios and accessories, wireless LANs, digital cameras, personal stereos and portable and battery-powered equipment.
Input voltage range from 2V to 6V
Operating temperature range from -40°C to 85°C
Low 40µA ground current
Excellent load/line transient
Overcurrent and thermal protection
Maximum shutdown supply current of 1µA at TA=+25⁰C
Output noise voltage of 11µV at f = 100Hz to 100KHz, ILOAD = 10mA
Maximum shutdown exit delay is 300µs
Thermal shutdown is 160°C
3V output voltage
Base Stations; Bluetooth® Portable Radios and Accessories; Cellular and Cordless Phones; Digital Cameras;
PDA and Palmtop Computers; Personal Stereos; Portable and Battery-Powered Equipment; Wireless LANs
