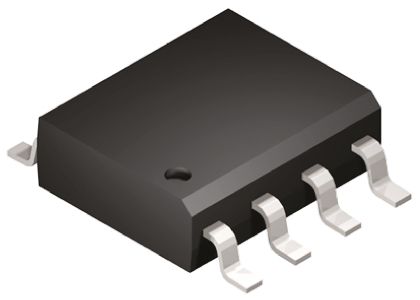

The MAX708RCSA+ is a +3V voltage monitoring low cost microprocessor (µP) supervisory circuit in 8 pin NSOIC package. This supervisory circuit reduces the complexity and number of components required to monitor +3V power supply levels in +3V to +5V µP systems. It significantly improves system reliability and accuracy compared to separate ICs or discrete components. This device provides reset output during power-up, power-down and brown-out conditions. The MAX708R provides 1.25V threshold detector for power fail warning, low battery detection or for monitoring power supply other than main supply. It also provides active-low manual reset input. This device is used in computers, controllers, intelligent instruments, critical µP power monitoring and battery powered equipments.
Supply voltage range from 1V to 5.5V
Operating temperature range from 0°C to 70°C
Active-high, push-pull / active-low, push-pull reset output signal
Reset threshold of 2.63V and reset time delay of 200ms
