MAX5530ETC+Maxim IntegratedMAXIM INTEGRATED PRODUCTS MAX5530ETC+ Digital to Analog Converter, Ultra Low Power, Voltage Output, 12Bit, Serial, 1.8V to 5.5V, TQFN
￥
21.47

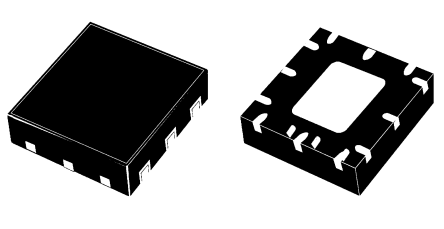

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX5530ETC+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX5530ETC+
百芯编号#:
CM37940261
价格(CNY):
￥
21.47
百芯库存:
240
个
库存地点:
可供应量:
140
个在库
此为供应商库存，需要与销售确认
产品类别:
DA转换器,数模
产品描述:
MAXIM INTEGRATED PRODUCTS MAX5530ETC+ Digital to Analog Converter, Ultra Low Power, Voltage Output, 12Bit, Serial, 1.8V to 5.5V, TQFN
The MAX5530ETC+ is an ultra low power, 12bit, voltage output digital to analogue converter in 12 pin TQFN package. It offers rail to rail buffered voltage outputs. The DAC operate from a 1.8V to 5.5V supply and consume less than 6µA, making them desirable for low power and low voltage applications. A shutdown mode reduces overall current, including the reference input current of 0.18µA. The MAX5530 use a 3-wire serial interface that is compatible with SPI, QSPI and MICROWIRE. At power-up, the MAX5530 outputs are driven to zero scale, providing additional safety for applications that drive valves or for other transducers that must be off during power-up. The zero-scale outputs enable glitchfree power-up. The MAX5530 accepts an external reference input and has a force sense configured output buffers.
Integral non linearity is ±4LSB and differential non linearity is ±0.2LSB
Operating temperature range from -40°C to 85°C
Fast 16MHz 3 wire serial interface
TTL and CMOS compatible digital inputs with hysteresis
