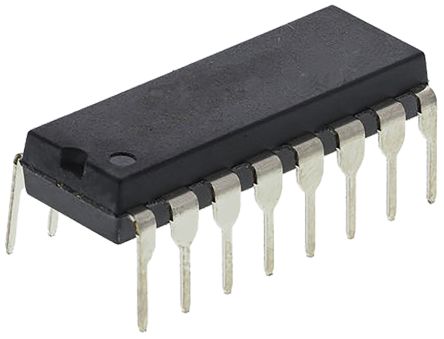

MAX536BCPE+Maxim IntegratedMAXIM INTEGRATED PRODUCTS MAX536BCPE+ Digital to Analog Converter, Precision, 12Bit, Serial, 10.8V to 16.5V, -4.5V to -5.5V, DIP
￥
394.37
显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX536BCPE+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX536BCPE+
百芯编号#:
CM42266034
价格(CNY):
￥
394.37
百芯库存:
101
个
库存地点:
可供应量:
65
个在库
此为供应商库存，需要与销售确认
产品类别:
DA转换器,数模
产品描述:
MAXIM INTEGRATED PRODUCTS MAX536BCPE+ Digital to Analog Converter, Precision, 12Bit, Serial, 10.8V to 16.5V, -4.5V to -5.5V, DIP
The MAX536BCPE+ is a calibrated, quad, 12bit, voltage-output digital to analogue converter (DAC) with serial interface in 16 pin DIP package. It contains four 12bit voltage output DAC that are easily addressed using a simple 3-wire serial interface. They include a 16bit data-in/data-out shift register and each DAC has a double buffered input composed of an input register and DAC register. DAC is an "inverted" R-2R ladder networks that convert 12bit digital inputs into equivalent analogue output voltages in proportion to applied reference voltage inputs. The serial interface is compatible with either SPI/QSPI or MICROWIRE and allows the input and DAC registers to be updated independently or simultaneously with a single software command. The DAC registers can be simultaneously updated with a hardware LDAC (complementary) pin. All logic inputs are TTL/CMOS compatible. It is used in automatic test equipment, digital offset and gain adjustment and microprocessor-controlled systems.
Supply voltage range is 10.8V to 16.5V, -4.5V to -5.5V
Operating temperature range from 0°C to 70°C
Power-on reset, total unadjusted error of ±2LSB at TA = +25°C
Integral nonlinearity of ±1LSB & differential nonlinearity of ±1LSB
Full 12bit performance without adjustments, PSRR of ±0.02LSB/V at TA = +25°C, 10.8V < VDD < 13.2V
Buffered voltage output, reference 3dB bandwidth of 700KHz at VREF = 2VP-P
Maximum positive supply current is 18mA at TA = +25°C
Voltage output slew rate is 5V/µs, digital crosstalk is 8nV-s
