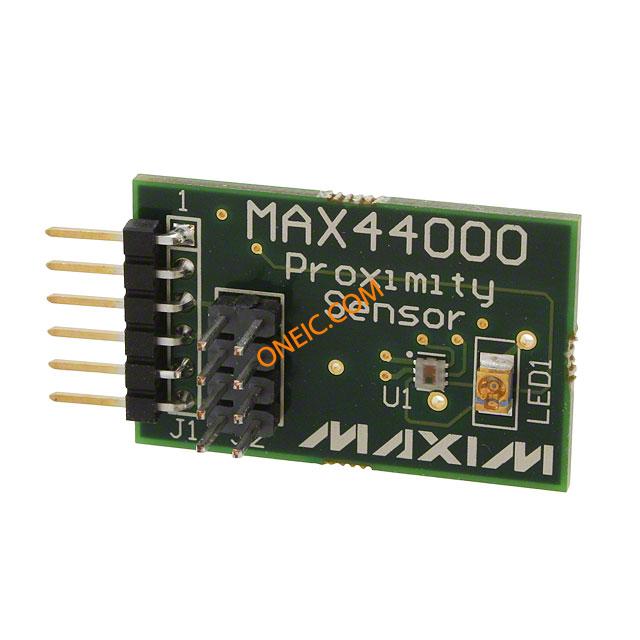

The MAX44000PMB1# from Maxim Integrated Products is a peripheral module. This module provides necessary hardware to interface the MAX44000 ambient and infrared proximity sensor to any system that utilizes Pmod™ compatible expansion ports configurable for I2C communication. The IC combines a wide dynamic range ambient light sensor with an integrated infrared (IR) proximity sensor. The on-chip ambient light sensor has the ability to make wide dynamic range 0.03 lux to 65,535 lux measurements. An on-chip IR proximity detector is matched with an integrated IR LED driver. All readings are available on an I2C communication bus. Typical applications include appliances, automotive, HVAC and industrial equipments.
Ambient light sensor
Close range proximity detector
Integrated single pulse IR LED driver
6 pin Pmod compatible connector (I2C)
Secondary header allows daisy chaining of additional modules on the I2C bus
