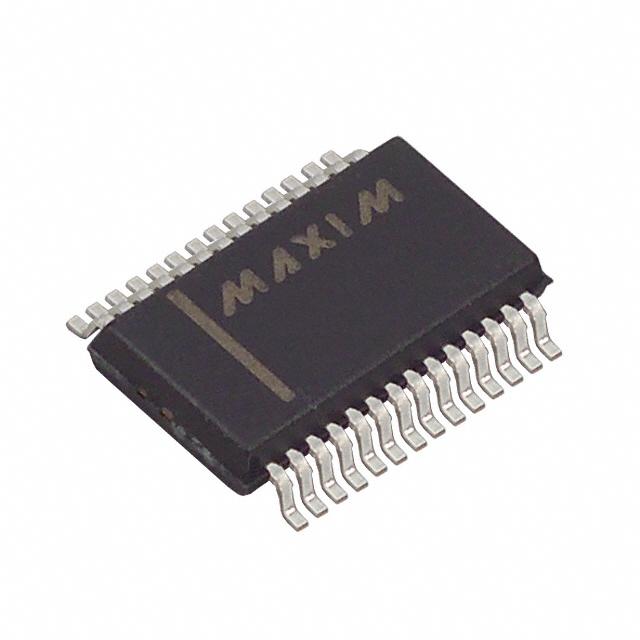

The MAX211ECAI+T is a TTL tri-state ±15KV ESD protected, +5V RS232 transceiver in 28 pin SSOP package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM (Human Body Model) protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. The device is typically used in battery powered equipment.
Four drivers and five receivers
Supply voltage range from 4.5V to 5.5V
Operating temperature range from 0°C to 70°C
Supply current is 14mA
Four 0.1µF external capacitors
Shutdown supply current is 1µA to save power for reduced power requirement
