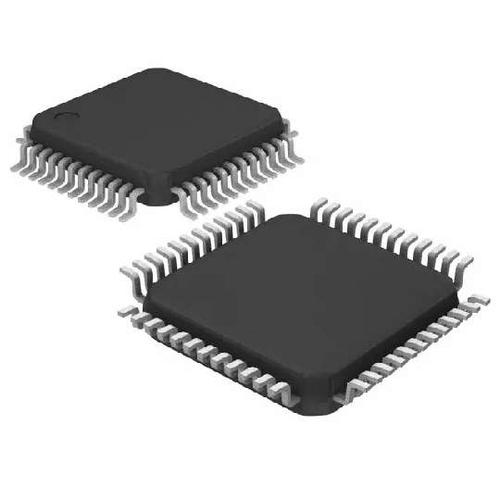

The LPC11E14FBD48/401 is a 32-bit Microcontroller based on ARM Cortex-M0 core with RISC architecture operates at a maximum frequency of 50MHz. The device incorporates 32kB internal flash, 10kB internal RAM, 4kB EEPROM, four general-purpose counters/timers, 8-channel 10-bit A/D converter with sample rates of up to 400ksps and 40 general-purpose I/O pins. This device also features peripherals like one RS-485/EIA-485 USART with support for synchronous mode and smart card interface and one inter-integrated circuit (I2C).
ARM Cortex-M0 built-in nested vectored interrupt controller (NVIC)
Non-maskable interrupt (NMI) input selectable from several input sources
System tick timer
16KB Boot ROM including 32-bit integer divide routines and power profiles
In-system programming (ISP) and In-application programming (IAP)
Standard JTAG test interface for BSDL
Serial wire debug
Up to 8 GPIO pins can be selected as edge and level sensitive interrupt sources
Two GPIO grouped interrupt modules
High-current source output driver (20mA) on one pin
High-current sink driver (20mA) on true open-drain pins
Programmable windowed watchdog timer (WWDT)
10-bit ADC with input multiplexing among eight pins
Two SSP controllers with FIFO and multi-protocol capabilities
Crystal oscillator with an operating range of 1MHz to 25MHz
