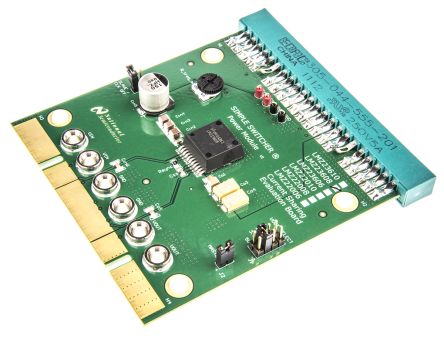

The LMZ23608EVAL/NOPB is an evaluation board for LMZ23608, a simple switcher power module which can be easy to use DC to DC solution capable of driving up to a 10A load. The LMZ23608 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ23608 can accept an input voltage rail between 6V and 36V. The device can deliver an adjustable and highly accurate output voltage as low as 0.8V and as high as 6V. The control structure is constant frequency PWM. The control loop operates well with low ESR output capacitors such as ceramics. The precision enable input allows for programmable UVLO of the input supply. The external soft start capacitor facilitates a controlled and adjustable start up rise time of the output.
Integrated shielded inductor
Simple PCB layout
Flexible start up sequencing using external soft start capacitor and precision enable
Frequency synchronisation input (650kHz to 950kHz)
Protection against inrush currents and faults such as input UVLO and output short circuit
