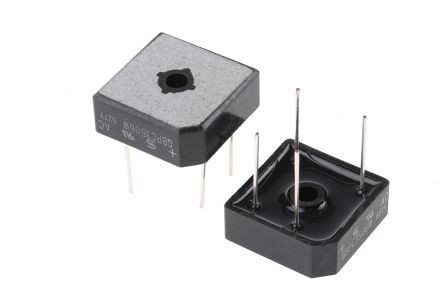

The GBPC3506W from Taiwan Semiconductor is a glass passivated bridge rectifier with wire structure. The rectifier bridge consists of four silicon junctions connected as a full bridge. Integrally moulded heat sink provide very low thermal resistance for maximum heat dissipation.
Maximum repetitive peak reverse voltage Vrrm is 600V
Maximum RMS voltage is 420V
Maximum DC blocking voltage is 600V
Maximum average forward rectified current I (AV) is 35A
Operating temperature range from -55°C to +150°C
High surge current capability
Maximum instantaneous forward voltage drop per element at 17.5A VF is 1.1V
Maximum reverse current at rated VR, TJ=25°C is 5µA
UL recognized file number E-3262430
Matte tin plated leads, solderable per JESD22-B102
