This eight-port repeater is designed for high-speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1108 accepts and outputs LVDS levels with a typical differential output swing of 330mV, which provides low EMI at ultra-low power dissipation even at high frequencies. The FIN1108 provides a V reference for AC coupling on the inputs. In addition, the FIN1108 can directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.
Features
---
|
Greater than 800 Mbps data rate
3.3V power supply operation
3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
Wide rail-to-rail common mode range
LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
Ultra low power consumption
20 ps typical channel-to-channel skew
Power off protection
>7.5 kV HBM ESD Protection
Meets or exceeds the TIA/EIA-644-A LVDS standard

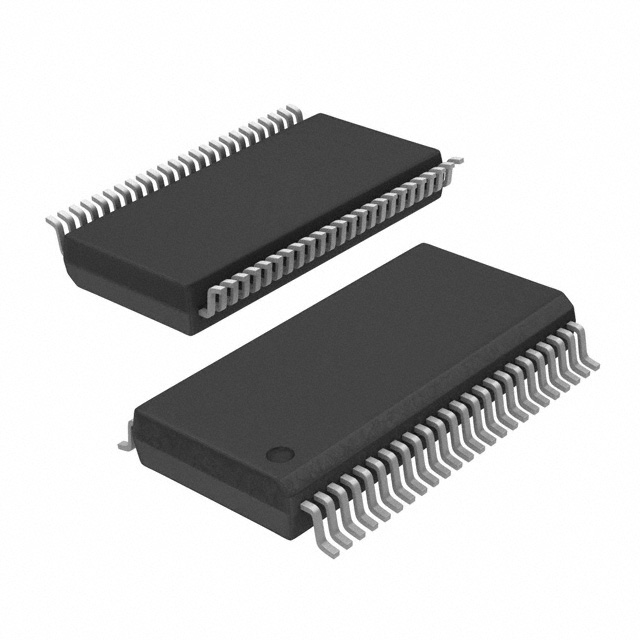

Available in space saving 48-lead TSSOP package
Open circuit fail safe protection
VBB >reference output
FIN1108T (RT) features Internal Termination Resistors
