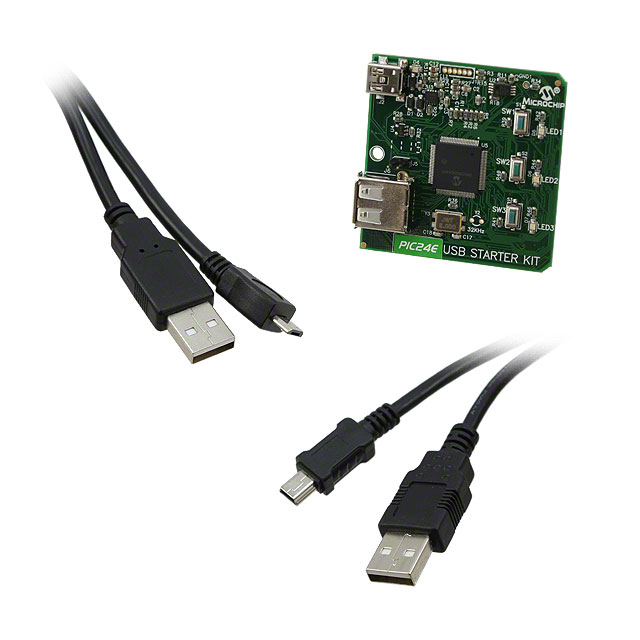

The DM240012 is a MPLAB starter kit for PIC24E MCUs. The PIC24E USB starter kit provides a low cost method for the development and testing of USB host and device applications on the PIC24E MCU family. The board contains an on-board programming/debugger, standard A USB and micro A/B connectors, three user-programmable LEDs, three push button switches and an expansion header compatible with the Multimedia expansion-board (DM32005) and I/O expansion-board (DM320002). The starter kit comes preloaded with basic communication device class (CDC) demonstration software.
PIC24EP512GU810 16bit MCU
Green power indicator LED
8MHz crystal for precision microcontroller clocking
USB connectivity for on-board debugging communications
Three push button switches for user-defined inputs
Three user-defined indicator LEDs
USB type A receptacle connectivity for PIC24E USB host-based applications
HOST mode power jumper
USB type micro B receptacle for USB Device connectivity for PIC24E USB device based applications
