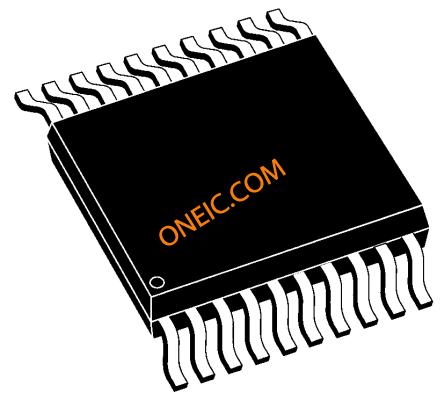

The CY8C24223A-24PVXI is a 8-bit PSoC® Programmable System-on-Chip Microcontroller designed to replace multiple traditional MCU-based system components with a single-chip programmable component. A PSoC device include configurable blocks of analog and digital logic and programmable interconnects. This architecture makes it possible for you to create customized peripheral configurations that match the requirements of each individual application. Additionally, a fast CPU, flash program memory, SRAM data memory and configurable I/O. The PSoC architecture consists of four main areas, PSoC core, digital system, analog system and system resources. Configurable global busing allows combining all the device resources into a complete custom system. The PSoC CY8C24x23A family has three I/O ports that connect to the global digital and analog interconnects, providing access to four digital blocks and six analog blocks.
Powerful Harvard-architecture processor
M8C Processor speeds up to 24MHz
8 x 8 Multiply, 32-bit accumulate
14-bit Analog-to-digital converters (ADCs)
9-bit Digital-to-analog converters (DACs)
Programmable gain amplifiers (PGAs)
Programmable filters and comparators
Cyclical redundancy check (CRC) and pseudo random sequence (PRS) modules
