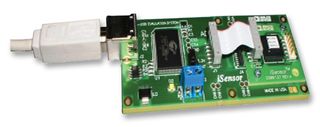

The ADIS16265/PCBZ is a "breakout board" that provides ADIS16265BCCZ and interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16265BCCZis a fully calibrated, digital MEMS gyroscope, that combine industry leading MEMS and signal processing technology in a single compact package. They provide accuracy performance that would require full motion calibration with any other MEMS gyroscope in their class, It provides a serial peripheral interface (SPI) for all digital communications. It is in a 20 lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16265BCCZ, using dual row, 12pin connectors, which supports standard ribbon cable systems and hand soldering connection techniques.
Easy connectivity and do not support stand alone functionality
Compact size minimizes the effect on the system and on sensor measurements
A stiff and thick PCB minimizes mechanical effects on sensor, delivering truer sensor measurements
Yaw rate gyroscope with range scaling ±80°/sec, ±160°/sec, and ±320°/sec settings
No external configuration required to start data collection
Factory calibrated sensitivity and bias
SPI compatible serial interface
Relative angle displacement output
Embedded temperature sensor
Programmable operation and control
ESD sensitive device, take proper precaution while handling the device.
