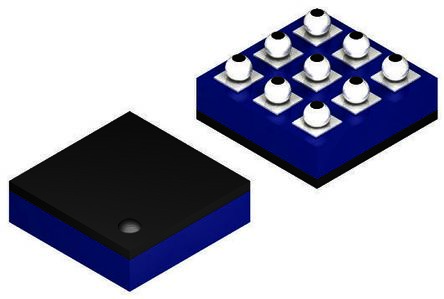

The TPS81256SIPT is a MicroSiP DC/DC Step-up Power Solution intended with switching regulator, inductor and input/output capacitors. Only a tiny additional output capacitor is required to finish the design. The TPS81256 is based on a high-frequency synchronous step-up DC/DC converter optimized for battery-powered portable applications. The DC/DC converter operates at a regulated 4MHz switching frequency and enters power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the supply current to 43µA (typical) during light load operation. Intended for low-power applications, the TPS81256 supports more than 3W output power over a full Li-ion battery voltage range. Input current in shutdown mode is less than 1µA (typical), which maximizes battery life.
3W High-efficient boost converter module
91% Efficiency at 4MHz operation
Fixed output voltage
±2% Total DC voltage accuracy
43µA Supply Current
Best in class line and load transient
VIN >= VOUT operation
Low-ripple light-load PFM mode
True load disconnect during shutdown
Thermal shutdown and overload protection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
