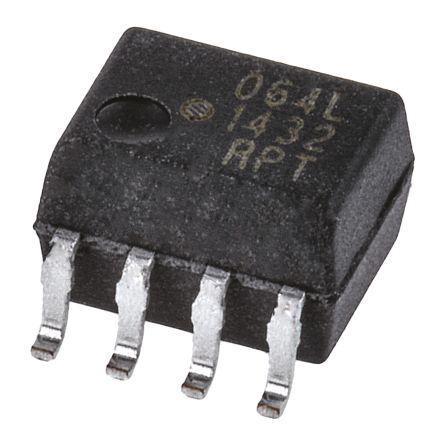

The Broadcom ACPL-064L (dual-channel, SO-8 package) optocoupler is part of the Broadcom ultra low power ACPL-x6xL digital optocouplers that combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum*1.3mA IDD** current per channel across temperature. With a forward LED current as low as **1.6 mA**, most microprocessors can directly drive the LED.
An internal Faraday shield provides a guaranteed common mode transient immunity specification of 20 kV/µs. Maximum AC and DC circuit isolation is achieved while maintaining TTL/CMOS compatibility.
The optocouplers CMOS outputs are slew-rate controlled and is designed to allow the rise and fall time to be controlled over a wide load capacitance range.
The ACPL-x6xL series operates from both 3.3 V and 5 V supply voltages with guaranteed AC and DC performance from –40°C to +105°C.
These low-power optocouplers are suitable for high speed logic interface applications.
### Features
Ultra low IDD current: 1.3mA/channel max
Low input current: 1.6mA min
Built-in slew-rate controlled outputs
20 kV/μs min Common Mode Rejection (CMR) at VCM = 1000 V
High Speed: 10 MBd min
Guaranteed AC and DC performance over wide temperature: -40°C to +105°C
SO8 package
Safety Approval (Pending)
\- UL 1577 recognized - 3750 V rms for 1 minute
\- CSA Approval
\- IEC/EN/DIN EN 60747-5-5 Approval for Reinforced Insulation
