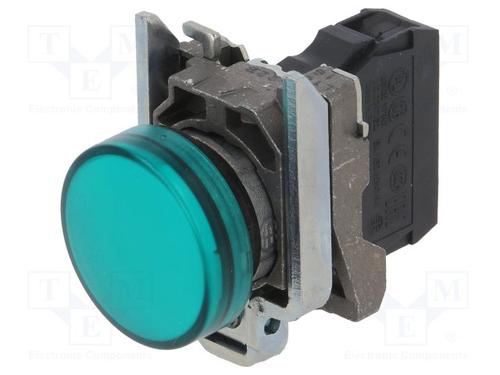

The XB4BVM3 from Schneider Electric is a Harmony XB4 green colour complete pilot light plain lens with integral protected LED. It has round shape signalling unit head. The device also has IP66 degree of protection conforming to IEC 60529, IK05 degree of protection conforming to IEC 50102, NEMA 4X and NEMA 13 degree of protection. It complies with CSA C22-2 number 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520 and UL 508 standards.
Rated supply voltage from 230VAC to 240VAC, 50Hz/60Hz
Screw clamp terminal connections
Mounting diameter of 22mm
Chromium plated metal bezel material and zamak fixing collar material
Dimension is 47mm x 30mm x 54mm (H x W x D)
Rated insulation voltage of 250V conforming to EN 60947-1
Rated impulse withstand voltage of 4KV conforming to EN 60947-1
Current consumption of 14mA
Service life of 100000h at rated voltage and 25°C
Ambient air temperature for operation from -25°C to 70°C
