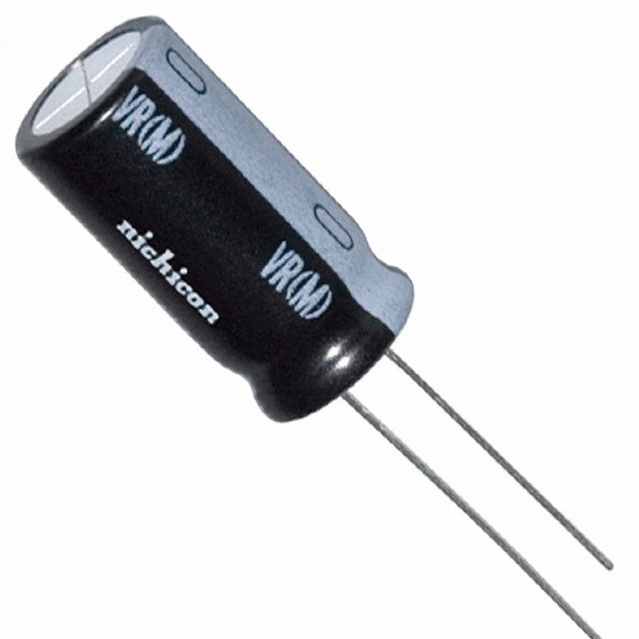

This electrolytic UVR1C103MRD6 aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 10000uF. Its leakage current is 4800@1Min|1600@2Min μA. The UVR1C103MRD6 aluminum electrolytic capacitor has a radial termination style. This product is 31 mm tall with a diameter of 20 mm. This part has a lead diameter of 1 mm and a pitch of 10 mm. It has a tolerance of 20%.
