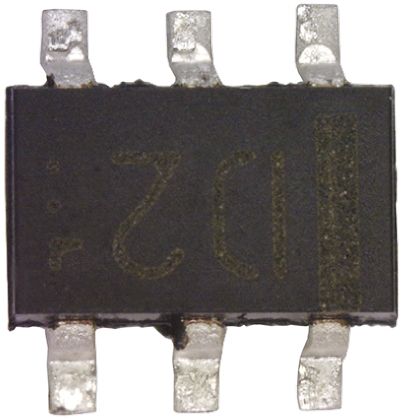

The UMB2NTN is a dual PNP complex digital Bipolar Transistor Array with bias resistors enables the configuration of an inverter circuit without connecting external input resistors. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing inner circuit of the input. They also have the advantage of completely eliminating parasitic effects. It is suitable for inverter circuit, interface circuit, driver circuit applications.
Built-in biasing resistors (R1 = R2 = 47kR)
Only the ON/OFF conditions need to be set for operation, making the circuit design easy
