The UCC283−3/−5/−ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283−5 passes 3 A while requiring only 0.45 V of typical input voltage headroom (ensured 0.6-V dropout).
• Precision Positive Linear Series Pass Voltage Regulation
• 0.45 V Dropout at 3 A
• 50 mV Dropout at 10 mA
• Quiescent Current Under 650 µA Irrespective of Load
• Adjustable (5-Lead) Output Voltage Version

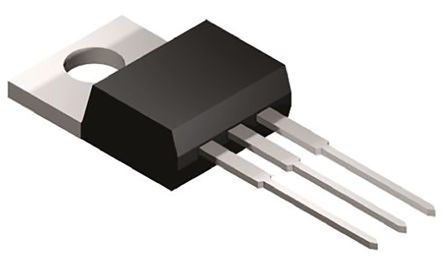

• Fixed (3-Lead) Versions for 3.3-V and 5-V Outputs
• Logic Shutdown Capability
• Short-Circuit Power Limit of (3% × VIN × ISHORT)
