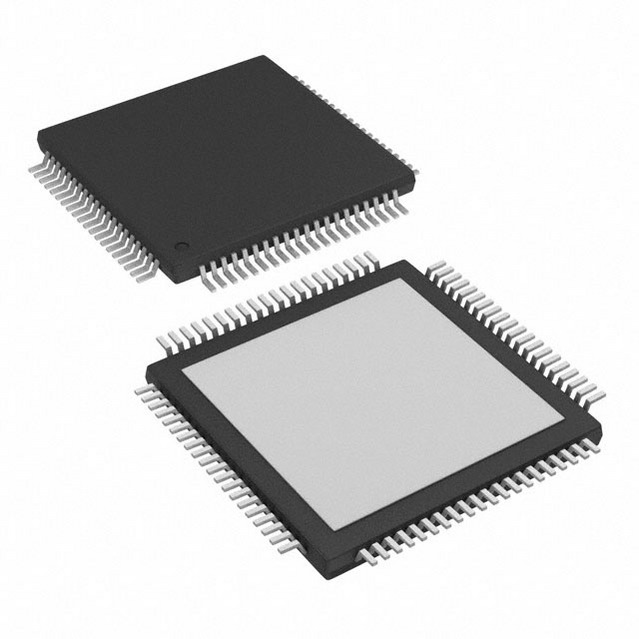

The TVP5147PFP is a high-quality, single-chip Digital Video Decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147 decoder supports the analog-to-digital conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL and SECAM composite and S-video into component YCbCr. This decoder includes two 10-bit 30MSPS analog-to-digital converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of 10 video input terminals can be configured to a combination of YPbPr, CVBS or S-video video inputs.
Robust sync detection for weak and noisy signals as well as VCR trick modes
Y/C separation by 2-D, 5-line, adaptive comb or chroma trap filter
Two 10-bit, 30MSPS ADC with analog preprocessors
Clock/timing processor and power-down control
Software-controlled power-saving standby mode
Output formatter
I²C host port interface
VBI data processor
Macrovision copy protection detection circuit (Type 1, 2, 3 and separate colour stripe detection)
3.3V Tolerant digital I/O ports
Two 30MSPS 11-bit A/D channels with video encoder synchronization programmable gain control
Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60) and SECAM (B, D, G, K, K1, L)
Supports CVBS and S-video
Supports analog component YPbPr video format with embedded sync
10 analog video input terminals for multisource connection
Supports analog video output
User-programmable video output formats
HSYNC/VSYNC outputs with programmable position, polarity, width and field ID (FID) output
