TPS7301QPWTISingle Channel LDO Single Output LDO, 500mA, Adj.(1.2 to 9.75V), Integrated SVS, Low Quiescent Current LDO Regulator Pos 1.2V to 9.75V 0.5A 20Pin TSSOP Tube
￥
15.95

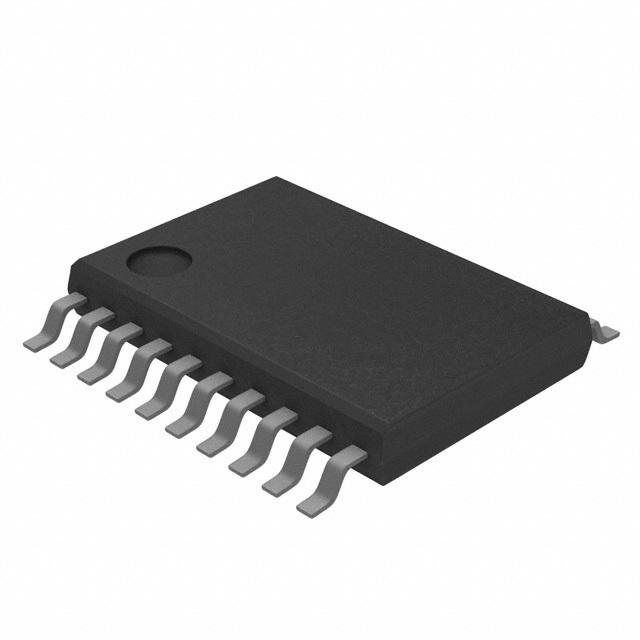

显示的图像仅供参考，应从产品数据表中获得准确的规格。
TPS7301QPWTI
制造商:
TI
制造商型号#:
TPS7301QPW
百芯编号#:
CM25973766
价格(CNY):
￥
15.95
百芯库存:
287
个
库存地点:
可供应量:
205
个在库
此为供应商库存，需要与销售确认
产品类别:
稳压,芯片
产品描述:
Single Channel LDO Single Output LDO, 500mA, Adj.(1.2 to 9.75V), Integrated SVS, Low Quiescent Current LDO Regulator Pos 1.2V to 9.75V 0.5A 20Pin TSSOP Tube
The TPS73xx devices are members of a family of micropower low-dropout (LDO) voltage regulators.
They are differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-resetfunction. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered.
Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions
Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage
Active-Low Reset Signal with 200-ms Pulse Width
Very Low Dropout Voltage...Maximum of 35 mV at IO= 100 mA (TPS7350)
Low Quiescent Current – Independent of Load. . . 340 µA Typ
Extremely Low Sleep-State Current, 0.5 µA Max
2% Tolerance Over Full Range of Load, Line, and Temperature for Fixed-Output Versions§
Output Current Range of 0 mA to 500 mA
TSSOP Package Option Offers Reduced Component Height For Critical Applications
