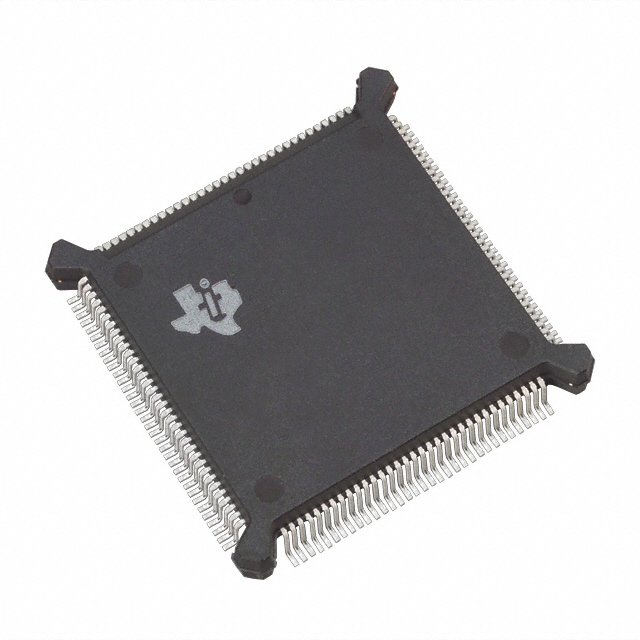

The TMS320C5x generation of the Texas Instruments (TI™) TMS320 digital signal processors (DSPs) is fabricated with static CMOS integrated circuit technology; the architectural design is based upon that of an earlier TI DSP, the TMS320C25. The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the ’C5x‡ devices. They execute up to 50 million instructions per second (MIPS).
• Powerful 16-Bit TMS320C5x CPU
• 20-, 25-, 35-, and 50-ns Single-Cycle Instruction Execution Time for 5-V Operation
• 25-, 40-, and 50-ns Single-Cycle Instruction Execution Time for 3-V Operation
• Single-Cycle 16 × 16-Bit Multiply/Add
• 224K × 16-Bit Maximum Addressable External Memory Space (64K Program, 64K Data, 64K I/O, and 32K Global)
• 2K, 4K, 8K, 16K, 32K × 16-Bit Single-Access On-Chip Program ROM
