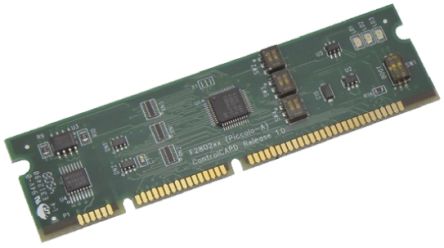

The TMDSCNCD28027 is a Piccolo controlCARD, The C2000 controlCARDs are ideal products for OEMs to use for initial software development and short run builds for system prototypes, test stands, and many other projects that require easy access to high performance controllers. The controlCARDs are complete board level modules that utilise an industry standard DIMM form factor to provide a low profile single board controller solution. All of the C2000 controlCARDs use the same 100 pin connector footprint to provide the analog and digital I/Os on board controller and are completely interchangeable. Each controlCARD provides an isolated RS 232 interface for communications. The host system needs to provide only 5V power to the controlCARD. ControlCARDs support the 60Mhz TMX320F28027 (Piccolo), the 100MHz TMS320F2808 (P/N TMDSCNCD2808) and the 150MHz floating point TMS320F28335 (P/N TMDSCNCD28335). Standalone JTAG emulator required.
TMS320F28027 piccolo microcontroller
Standard 100 pin DIMM interface
F28x analog I/O, digital I/O and JTAG signals at DIMM interface
Isolated RS 232 interface
5V power supply required
Standalone JTAG emulator required for debug
Small form factor - 9cm x 2.5cm
Standalone JTAG emulator required Sold separately.
