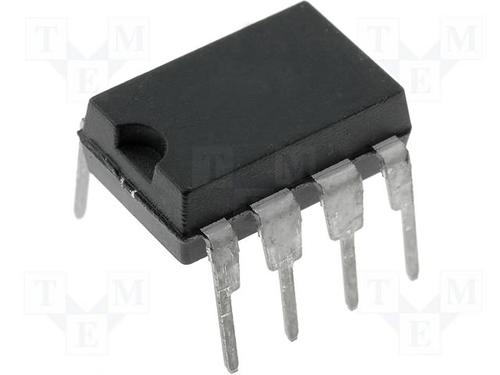

The OPA604AP is a FET-input Operational Amplifier IC, designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance. New circuit techniques and special laser trimming of dynamic circuit performance yield very low harmonic distortion. The result is an op amp with exceptional sound quality. The low-noise FET input of the OPA604 provides wide dynamic range, even with high source impedance. Offset voltage is laser-trimmed to minimize the need for interstage coupling capacitors.
0.0003% at 1kHz Low Distortion
10nV/Hz Low Noise
25V/µs High Slew Rate
Unity-gain Stable
Drives 600 Load
Dual Version Available
Green Product, No Sb/Br
ESD sensitive device, take proper precaution while handling the device, ESD damage can range from subtle performance degradation to complete device failure.
