The TLV707 series (TLV707 and TLV707P) of low dropout linear regulators (LDOs) are low quiescent current devices with excellent line and load transient performance for power-sensitive applications. These devices provide a typical accuracy of 0.5%. All versions have thermal shutdown and overcurrent protection for safety.
Features
• 0.5% Typical Accuracy
• Supports 200-mA Output
• Low IQ: 25 μA
• Fixed-Output Voltage Combinations Possible from 0.85 V to 5.0 V(1)
• High PSRR:
– 70 dB at 100 Hz
– 50 dB at 1 MHz
• Stable With Effective Capacitance of 0.1 μF(2)
• Thermal Shutdown and Overcurrent Protection

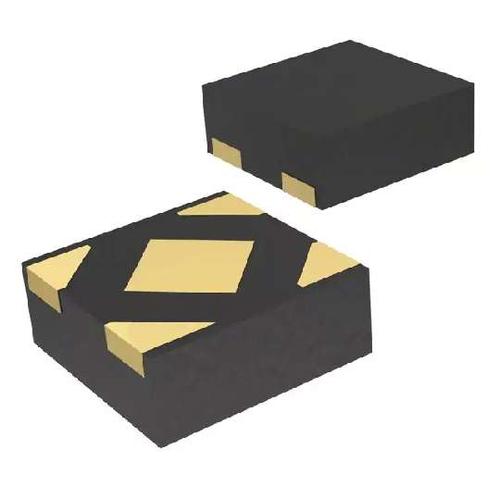

• Package: 1-mm × 1-mm DQN (X2SON)
(1) For all available voltage options, see the orderable addendum at the end of the data sheet.
(2) See Mechanical, Packaging, and Orderable Information for more details.
