The TLE4678 is a monolithic integrated low dropout fixed output voltage regulator for loads up to 200 mA. An input voltage of up to 45 V is regulated to an output voltage of 5 V. The integrated reset and watchdog function, as well as several protection circuits, combined with a wide operating temperature range offered by the TLE4678 make it suitable for supplying microprocessor systems in automotive environments.The watchdog circuitry will be disabled in case the output current drops below a programmable threshold, enabling a microcontroller to switch in stand-by mode. Modifying the reset threshold is possible by an optional resistor divider. The TLE4678 is available in a PG-DSO-14 package which makes it pin-compatible to the TLE4278 as well as in a small thermally enhanced PG-SSOP-14 exposed pad package.
Summary of Features:
Output Voltage 5 V ± 2%
Current Capability 200 mA
Ultra Low Current Consumption
Very Low Dropout Voltage
Watchdog Circuit for Monitoring a Microprocessor with Programmable Load-dependent Activating Threshold
Reset Circuit Sensing the Output Voltage with Programmable Switching Threshold and Delay Time
Reset Output Active Low Down to V Q = 1 V
Separated Reset and Watchdog Output
Excellent Line Transient Robustness
Maximum Input Voltage -42 V ≤ V I ≤ +45 V
Reverse Polarity Protection
Short Circuit Protected
Overtemperature Shutdown
Automotive Temperature Range -40 °C ≤ T j ≤ 150 °C

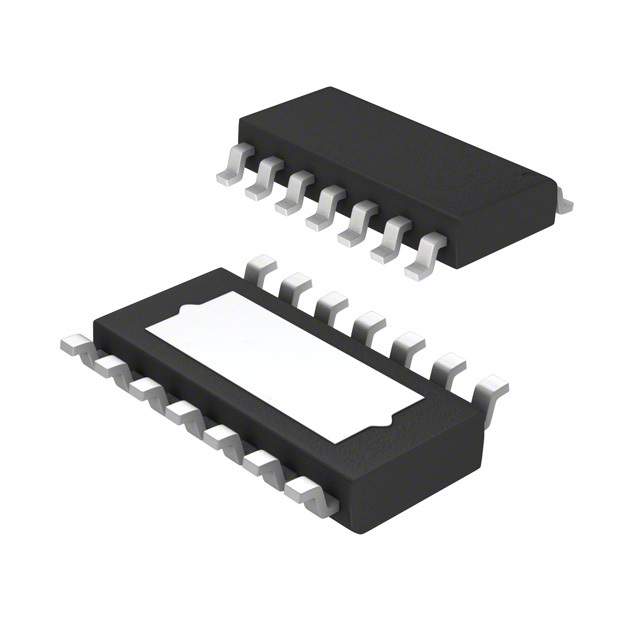

Available in a small thermally enhanced PG-SSOP-14 package
