STM32F103C8T6ST MicroelectronicsSTM32F103 Cortex, Flash 64KB, RAM 20KB, ADC 12Bit x 10, Timer 16Bit x 4, 24Bit down Counter, SPI x 2, I2C x 2, USART x 5, USB,CAN,RTC, WDG x 2, LQFP48 Package
￥
6.97
显示的图像仅供参考，应从产品数据表中获得准确的规格。

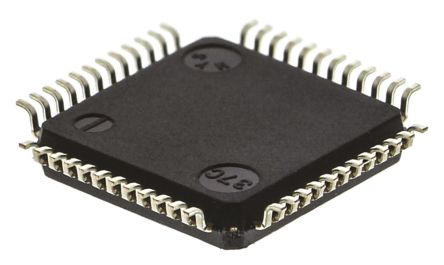

STM32F103C8T6ST Microelectronics
制造商:
ST Microelectronics
制造商型号#:
STM32F103C8T6
百芯编号#:
CM10330
价格(CNY):
￥
6.97
百芯库存:
432
个
库存地点:香港
可供应量:
270
个在库
此为供应商库存，需要与销售确认
产品类别:
微控制器,MCU,单片机
产品描述:
STM32F103 Cortex, Flash 64KB, RAM 20KB, ADC 12Bit x 10, Timer 16Bit x 4, 24Bit down Counter, SPI x 2, I2C x 2, USART x 5, USB,CAN,RTC, WDG x 2, LQFP48 Package
The STM32F103C8T6 is a medium density performance line, ARM Cortex-M3 32bit microcontroller in 48 pin LQFP package. It incorporates high performance RISC core with 72MHz operating frequency, high speed embedded memories, extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103C8T6 features 12bit ADC, timers, PWM timer, standard and advanced communication interfaces. A comprehensive set of power saving mode allows the design of low power applications.
Operating voltage range from 2V to 3.6V
64Kbytes of flash memory
20Kbytes of SRAM
CRC calculation unit, 96bit unique ID
Two 12bit, 1µs A/D converter (up to 10 channels)
7 channel DMA controller, 3 general purpose timer and 1 advanced control timer
37 fast I/O ports
Serial wire debug (SWD) and JTAG interfaces
Two SPI, two I2C, three USART, one USB and one CAN interfaces
Ambient operating temperature range from -40°C to 85°C
