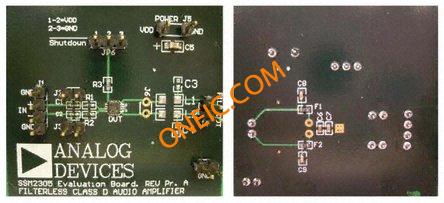

The SSM2305-EVALZ is an evaluation board for Mono 2.8W class-D audio amplifier. The SSM2305 evaluation board carries a complete application circuit for driving a loudspeaker. The SSM2305 is a fully integrated, single chip, mono class-D audio amplifier that is designed to maximize performance for mobile phone applications. The application circuit is capable of delivering 2.8W of continuous output power with less than 10% THD + N driving a 4R load from a single 5V supply. The SSM2305 comes with a differential mode input port and a high efficiency, full H-bridge at the output that enables direct coupling of the audio power signal to the loudspeaker. The differential mode input stage allows for cancelling of common mode noise.
Single ended and differential input capability
User friendly interface connection
Optimised EMI suppression filter assembled on board
Filterless class-D amplifier with Σ-Δ modulation
2.8W into 4R load and 1.6W into 8R load at 5V supply with <10% total harmonic distortion (THD)
