The AUP family is TI"s premier solution to the industry"s low-power needs in battery-powered portable
applications. This family ensures a very low static- and dynamic-power consumption across the entire V
CC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).
FEATURES

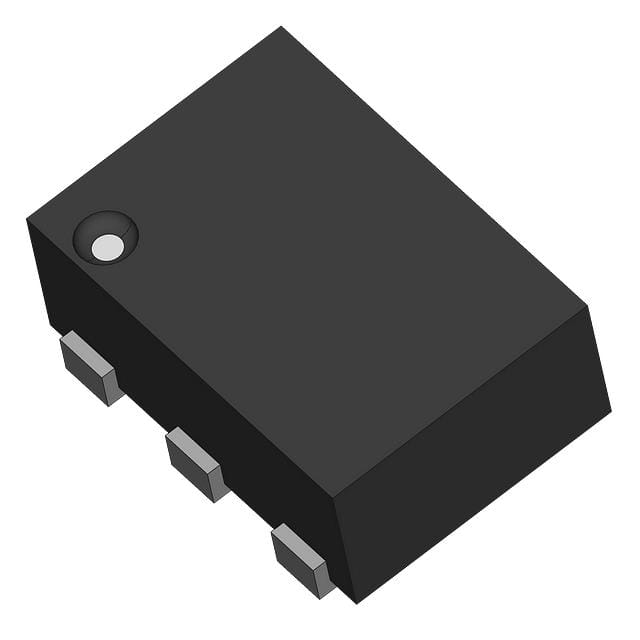

• Available in the Texas Instruments NanoStar™ Package
• Low Static-Power Consumption (ICC= 0.9 mA Max)
• Low Dynamic-Power Consumption (Cpd= 4.8 pF Typ at 3.3 V)
• Low Input Capacitance (CI= 1.5 pF Typ)
• Low Noise – Overshoot and Undershoot <10% of VCC
• Ioff Supports Partial-Power-Down Mode Operation
• Includes Schmitt-Trigger Inputs
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 5.6 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
